型號(hào) Type
XRNM
XRNP
額定電壓 Rated voltage
5.08KV
4.8KV
額定電流 Rated current
50/63/70/80/100A
3.15/5/6/6.3A
額定開斷電流 Rated breaking current
50KA
額定頻率 Rated frequency
50/60Hz

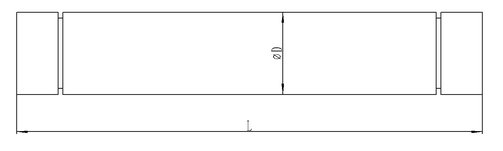

長度 L Length
392mm
145mm

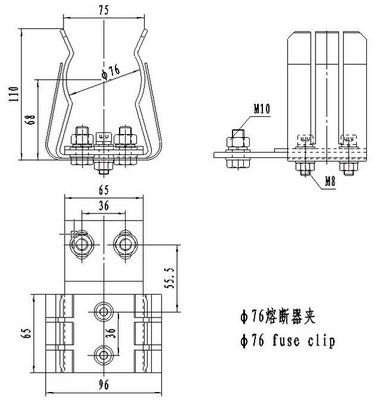

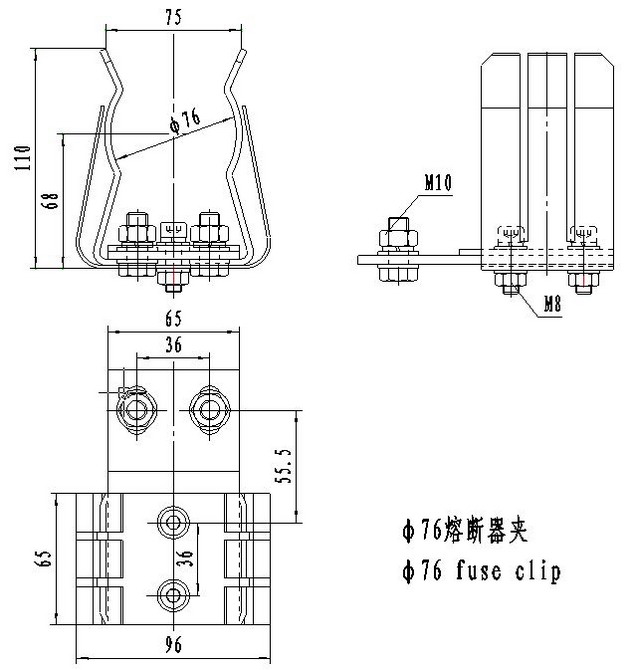

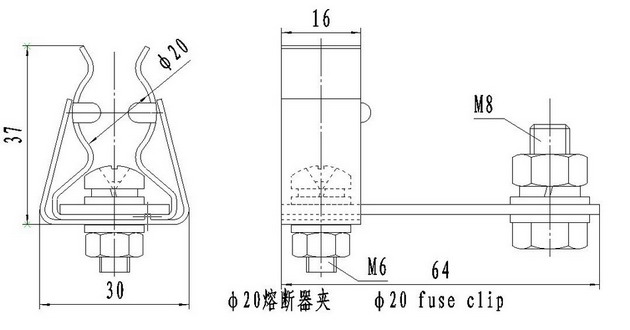

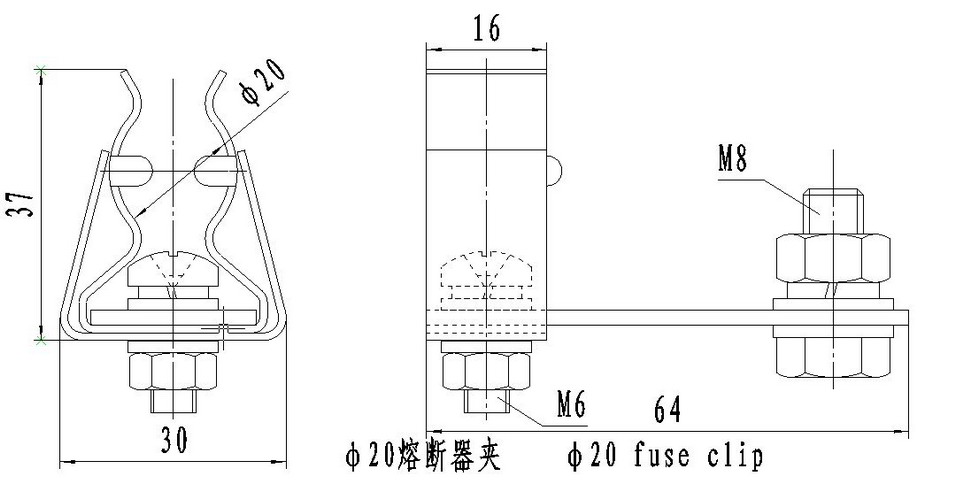

直徑 ?D Diameter
?76mm
?20mm
